大流量滤芯接长机
Equipment Name:High flow filter cartridge outer cage extension machine

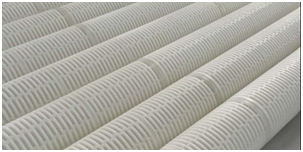

设备功能: 本设备为大流量滤芯接长机,是大流量滤芯生产线组成之一,主要用于滤芯的内外骨架与内外骨架接长、40英寸滤芯与20英寸滤芯的对接。焊接后有效保证滤芯的骨架、滤膜、端盖三者的密封性及牢固性。 Machine Feature High flow filter cartridge outer cage extension machine which is one of the components of the high flow pleated filter cartridge production line. It is used to weld the inner and outer cage of the filter cartridge,to make the two inner and outer cage together. 40-inch filter cartridge and 20-inch filter cartridge. After welding, it can effectively ensure the sealing and firmness of the outer cage, filter layer and end caps of the filter cartridge. | ||
技术参数: 设备名称:大流量滤芯接长机 设备型号:AY-LXJC1660 设备功率:6KW 使用电源:380V 50HZ 使用气压:6Kg/c㎡ 加热精度:±2℃ 温度范围:常温 ~ 400℃ 焊接节拍:约30S/支 外形尺寸:L2000*W1000*H1800 设备重量:约800Kg Technical parameters: Equipment Name:High flow filter cartridge outer cage extension machine Equipment model: RF-C1660 power: 6KW Power supply: 380V 50HZ Air pressure: 6Kg/cm2 Heating accuracy: ± 2 ° C Temperature range: normal temperature ~ 400 °C Welding speed: Approx:30S / pcs Dimensions: L2000*W1000*H1800 Equipment weight: about 800Kg | 配置明细: 触摸屏+PLC: 台达 断路器: LG 温控器: 汇邦 固态器: 希曼顿 导轨、滑块: 上银 辅助电器: 和泉 气动元件: 亚德客 防护罩: 欧标铝型材+透明有机玻璃 零部件: 45钢(表面电镀) 滤芯夹具: 6061铝板(表面本色阳极氧化) configuration details: Touch screen + PLC: Delta Circuit breaker: LG Touch screen + PLC: Delta Circuit breaker: LG Thermostat: Winpark Solid state: Shimadan Guide rail, slider: HIWIN Auxiliary appliances: IDEC Pneumatic components: Airtec Protective cover: European standard aluminum profile + PMMA Parts: carton steel C 45(S45C) (Galvanized) Filter cartridge holder: 6061 aluminum plate (surface anodized) 5, equipment price: yuan 6, manufacturing cycle: 30 working days | |
